Single and Two-Stage Lubricated Screw Compressors 160 – 250 kW – asktechcompaire

Single and Two-Stage Lubricated Screw Compressors 160 - 250 kW

Fixed & Regulated Speed L160 to L250

160 - 250 kW

ASK L160 to L250 compressors are engineered using advanced technology and modern design concepts to deliver superior performance, higher free air delivery, improved energy efficiency, and reliable industrial operation. Designed to meet evolving customer requirements, the range combines powerful compressed air performance with a compact footprint and reduced noise levels.

Featuring advanced cooling technology, intelligent control systems, and optimized airflow design, these compressors provide dependable continuous operation, simplified maintenance, and lower operating costs for demanding industrial applications.

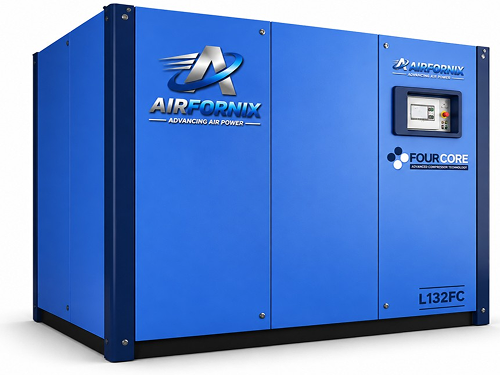

New CompAir FourCore range balances two-stage efficiency with single-stage footprin

ASK FourCore 110–250 kW compressors combine advanced two-stage compression efficiency with the compact footprint of a single-stage machine, delivering exceptional energy savings and sustainable performance for modern industrial applications. Designed for businesses seeking high efficiency without requiring additional installation space, the range offers superior compressed air performance with reduced operating costs.

Developed using innovative patented airend technology, the FourCore system integrates a single motor and four rotors within a compact semi-integrated design. This advanced engineering approach provides outstanding efficiency, reliable operation, and significant energy savings while maintaining the same compact size as conventional single-stage compressors.

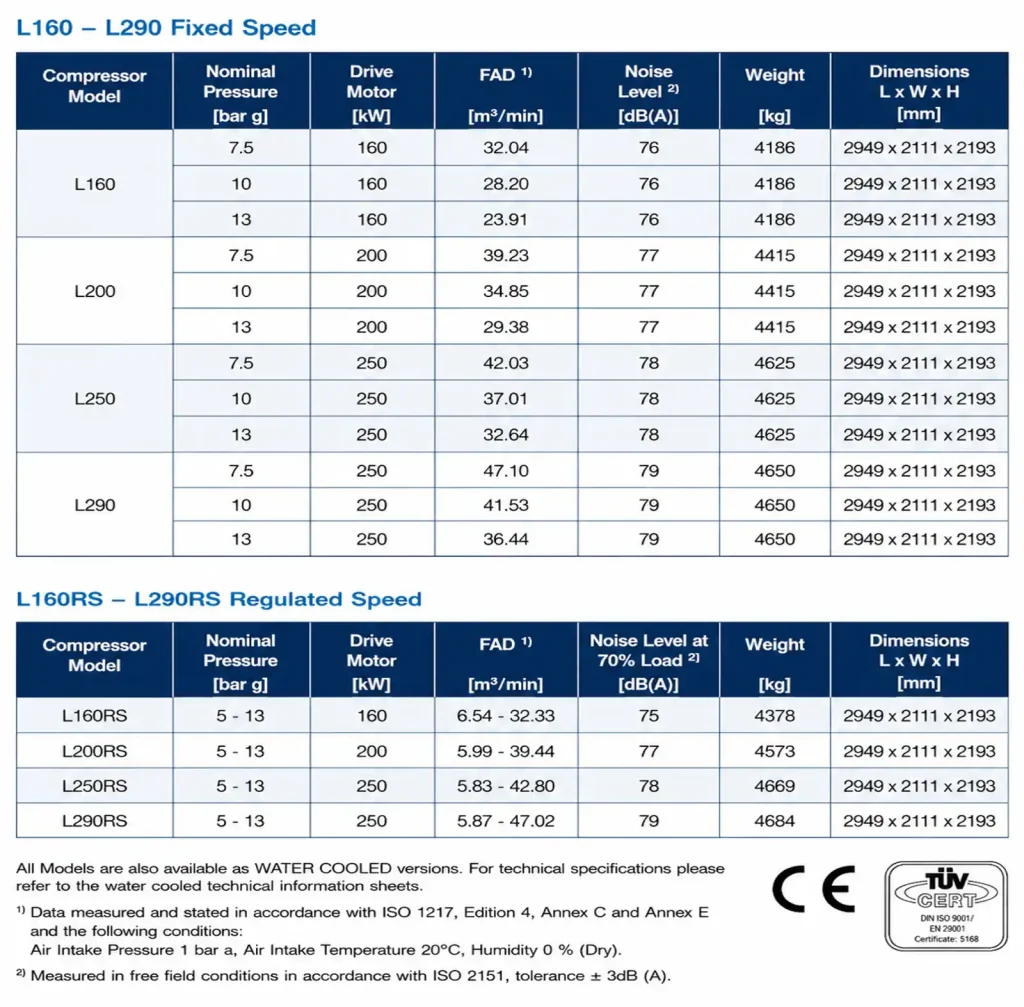

The Classic 160 to 250kW Range

The new E models complement the well-established ASK large screw compressor range, which has been trusted across thousands of industrial installations worldwide for many years. Designed to meet high-volume compressed air demands, these compressors deliver reliable and efficient performance for a wide range of industrial applications.

Premium airend for superior reliability and performance
Automatic motor lubrication system for enhanced protection
Compact design for reduced installation costs
Consistent high-quality compressed air output
Safe, efficient, and economical operation
Excellent service accessibility for lower maintenance costs

Design ASK FourCore range

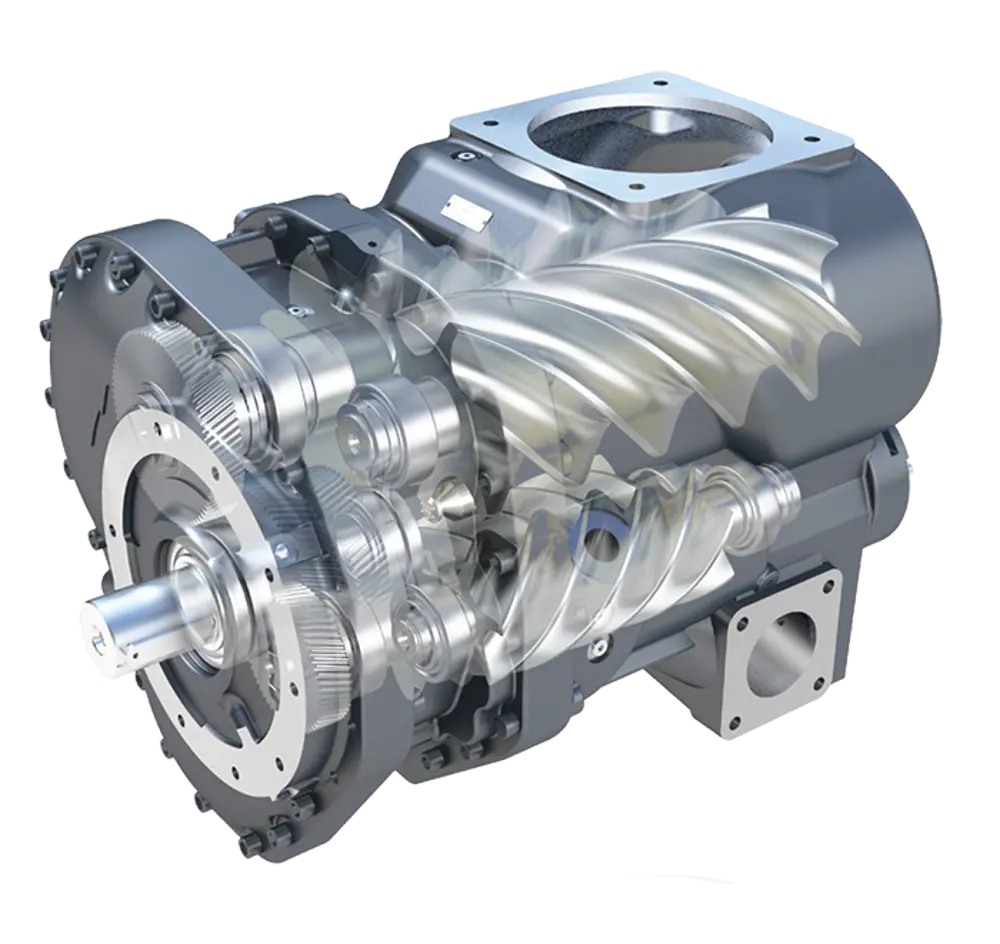

At the core of the ASK FourCore range is the advanced GD10-DS airend, featuring innovative two-stage compression technology designed for maximum efficiency and performance. The compact airend utilizes a four-gear design that enables flexible rotor speed adjustment across varying pressure conditions, delivering optimized airflow, superior efficiency, and reliable compressed air performance.

The semi-integrated airend design incorporates the oil filter, check valve, temperature valve, and oil distribution system within a single compact package. This reduces external connections and pipework, helping minimize leakage risks, simplify maintenance, and improve overall system reliability and serviceability.

One of the smallest footprints in the market of 2 stage oil lubricated units

The ASK L160FC to L290FC range delivers significantly higher efficiency than conventional single-stage compressors while maintaining the same compact, space-saving footprint. Engineered for superior industrial performance, this advanced compressor range combines next-generation efficiency, reliable operation, and intelligent design to help businesses reduce energy consumption while maximizing productivity and installation flexibility.

Delcos XL innovative touch-screen compressor controller

The advanced multilingual control system ensures safe, reliable, and efficient compressor operation by continuously monitoring critical operational parameters, helping reduce overall ownership and operating costs. Designed with a user-friendly interface, the Delcos XL controller provides detailed system analysis through trend diagrams and graphical data, allowing precise parameter adjustment for maximum efficiency and optimized compressor performance.

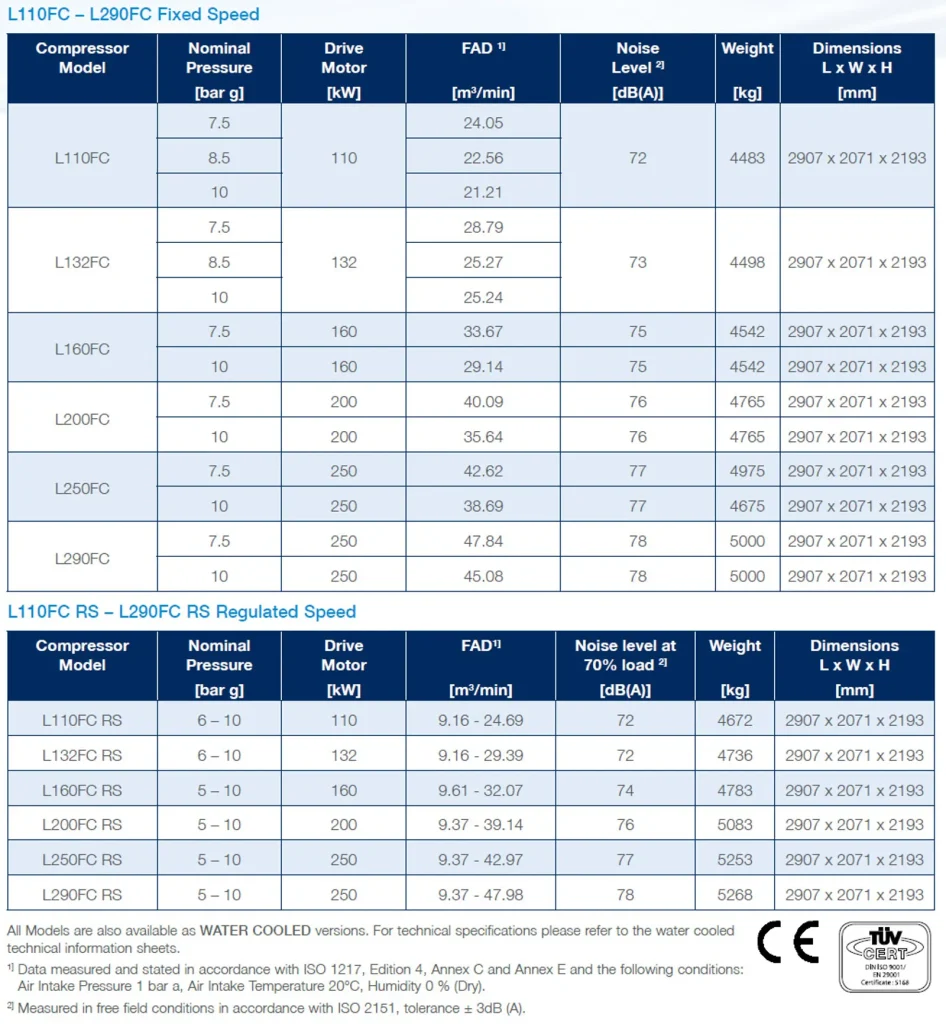

Performance Data New Fourcore (FC) Models

CompAir Genuine Parts

Model	Number	Description
L160 - L290	CK4GD10-1-N	Separator Kit (requires CK2 Kit)
L160 - L290, RS -A/ -W	CK4GD10-2-N	Separator Kit (requires CK2 Kit)
L160e - L290e	CK4GD10DS-1	4000 Hour Service Kit
L160e - L290e, RS -A/ -W	CK4GD10DS-2	4000 Hour Service Kit
L160e - L290e, RS -W	CK4GD10DS-3	4000 Hour Service Kit
L160 - L290, RS -W	CK4GD10-3-N	Separator Kit (requires CK2 Kit)
L160 - L290 -A, RS	CK8GD10-1-N	Major Kit (requires also CK4 Kit)
L160 - L290 -W, RS	CK8GD10-2-N	Major Kit (requires also CK4 Kit)
L160 - L250	SCWOBG2-5	Screw Warranty Oil Fluid Force, 5 l
L160 - L250	SCWOBG2-20	Screw Warranty Oil Fluid Force, 20 l
L160 - L250	A92130520	CompAir Warranty Oil AEON S, 5 l
L160 - L250	A92130530	CompAir Screw Warranty Oil AEON S, 20 l
