Lubricated Rotary Screw Compressor 30 - 45 kW
Advanced, Energy-Efficient and Reliable
Lubricated Rotary Screw Compressor 30 - 45 kW
ASK Lubricated Rotary Screw Compressors 30–45 kW are engineered to deliver reliable performance, superior energy efficiency, and high-quality compressed air for demanding industrial applications with continuous operation and low maintenance requirements.
Engineering Excellence Benefits
The New Generation
– Industries worldwide trust ASK rotary screw compressors for delivering high-quality and reliable compressed air. The ASK Li Series combines advanced engineering, modern design, and proven compressor technology to provide efficient, economical, and dependable performance for demanding industrial applications. Designed for operation within standard industrial pressure ranges, the series delivers consistent airflow and energy-efficient performance in air-cooled configurations.
Maximum Durability – ASK Li Series compressors are engineered for long service life and superior durability using corrosion-resistant stainless steel tubing and high-quality coated steel piping. Advanced sealing systems and heavy-duty connections improve operational reliability while reducing the risk of leakage and component wear in demanding environments.
Designed for Easy Serviceability – The Li Series is built for fast and convenient maintenance with quick-access removable panels and easily reachable service components. Filters and maintenance points are positioned for simplified servicing, helping reduce downtime and improve operational efficiency without the need for complex disassembly procedures.
A Design Concept Based on Quality
- High-efficiency in-house airend for reliable performance and low operating costs
- Belt-free direct or gear drive system for improved efficiency and reduced maintenance
- Premium IE3 energy-efficient motor for lower power consumption and reduced emissions
- High-performance separator system for cleaner compressed air and extended service life
- Heavy-duty inlet filter for superior protection against dust and contaminants
- Engineered for long-term durability, low noise operation, and maximum reliability

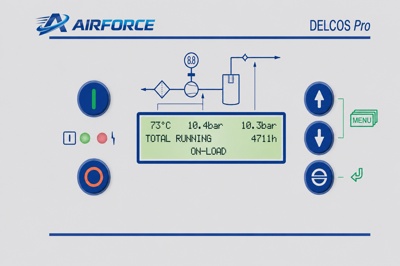

Delcos Pro Controller
The ASK Compressor control system is designed to ensure reliable operation, intelligent monitoring, and maximum equipment protection by continuously tracking key operational parameters. The advanced controller provides clear system information, improved connectivity, and efficient compressor management for optimized industrial performance.
- Discharge and line pressure monitoring
- Air and oil temperature display
- Total running and load hour tracking
- Service due and maintenance indicators
- Advanced fault log monitoring
- Real-time clock functionality
- Timer-controlled automatic start and stop
- Remote start and stop capability
- Automatic restart after power failure
- Secondary pressure setting support
- System status indication and diagnostics
- RS485 communication with Modbus RTU support
- Easy pressure adjustment through the controller interface

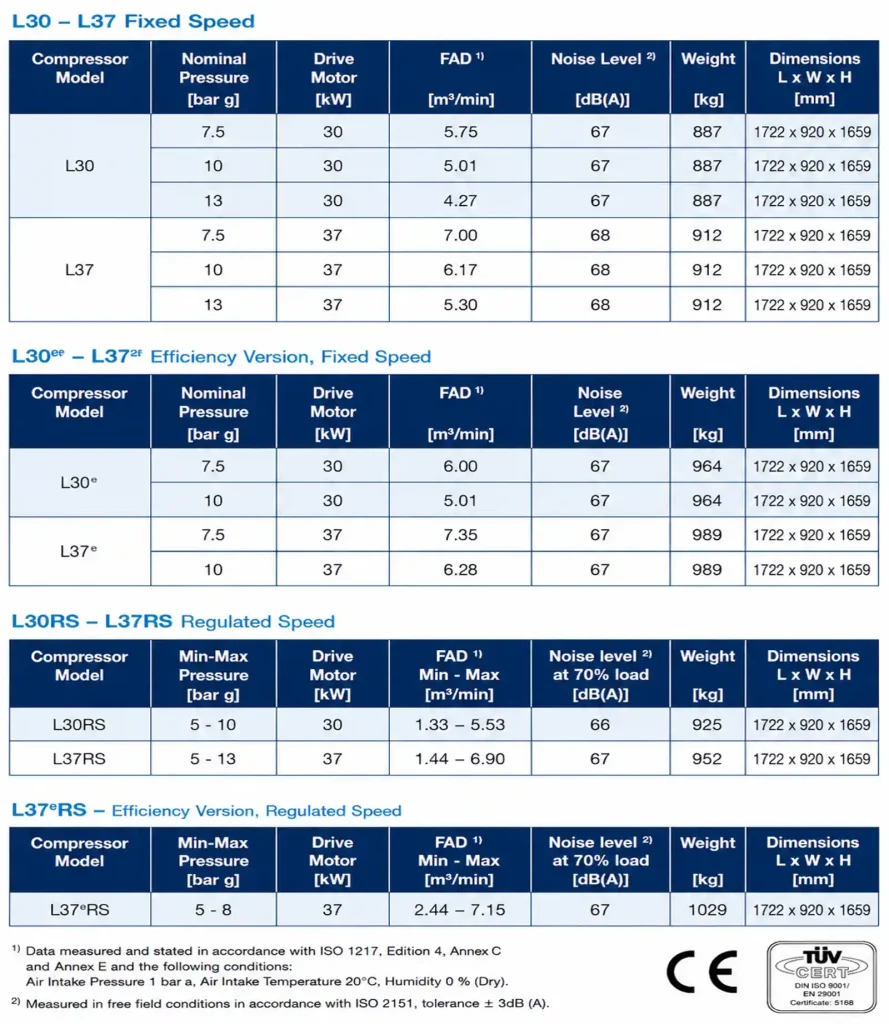

Technical Data
