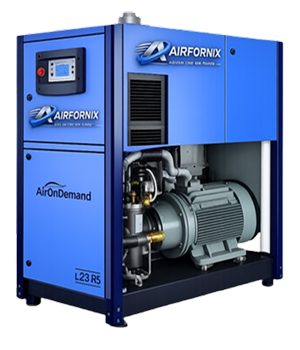

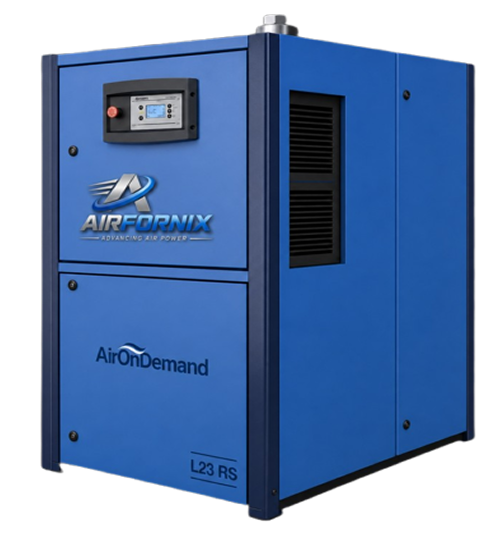

Lubricated Rotary Screw Compressor 22 - 30 kW

Reliable, Energy-Efficient and High-Performance

22 - 30 kW
Known for exceptional quality, reliability, and advanced engineering, the ASK L-Series is continuously developed to deliver outstanding performance, energy efficiency, and dependable compressed air solutions for industrial applications. The 22–30 kW lubricated rotary screw compressor range includes both fixed speed and variable speed models designed to meet diverse operational requirements with maximum efficiency and long-term reliability.
Contact Us →
Request a Quote →
Request Service, Parts or Support →

Engineering Excellence Benefits

  • High reliability with superior compressed air quality
  • Energy-efficient performance for reduced operating costs
  • Flexible configurations for various industrial applications
  • Compact footprint for space-saving installation
  • Low maintenance and servicing requirements
  • Advanced engineering and premium airend technology
  • Proven inverter technology for efficient speed regulation
  • Smart monitoring and Industry 4.0 connectivity solutions
  • Integrated heat recovery options
  • Efficient water separation systems
  • High-performance compressed air filtration
  • Automatic condensate drain solutions
  • Refrigerated compressed air dryers
  • Heatless desiccant drying systems
  • Heat regenerative desiccant dryers
  • Advanced nitrogen generation systems
  • Intelligent multi-compressor control solutions

A Design Concept Based on Quality

  • Large surface aftercooler for efficient cooling performance
  • High-performance separator filter for improved air quality
  • Energy-efficient electric motor for reduced power consumption
  • Thermostatically controlled motor-driven fan for optimized cooling
  • Premium-quality connections for reliable and durable operation

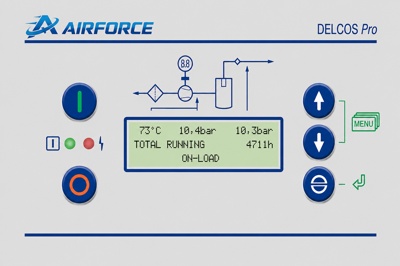

Delcos Pro Compressor Controller

The ASK Compressor control system is designed to ensure reliable operation, intelligent monitoring, and maximum equipment protection by continuously tracking key operational parameters. The advanced controller provides clear system information, improved connectivity, and efficient compressor management for optimized industrial performance.
  • Discharge and line pressure monitoring
  • Air and oil temperature display
  • Total running and load hour tracking
  • Service due and maintenance indicators
  • Advanced fault log monitoring
  • Real-time clock functionality
  • Timer-controlled automatic start and stop
  • Remote start and stop capability
  • Automatic restart after power failure
  • Secondary pressure setting support
  • System status indication and diagnostics
  • RS485 communication with Modbus RTU support
  • Easy pressure adjustment through the controller interface

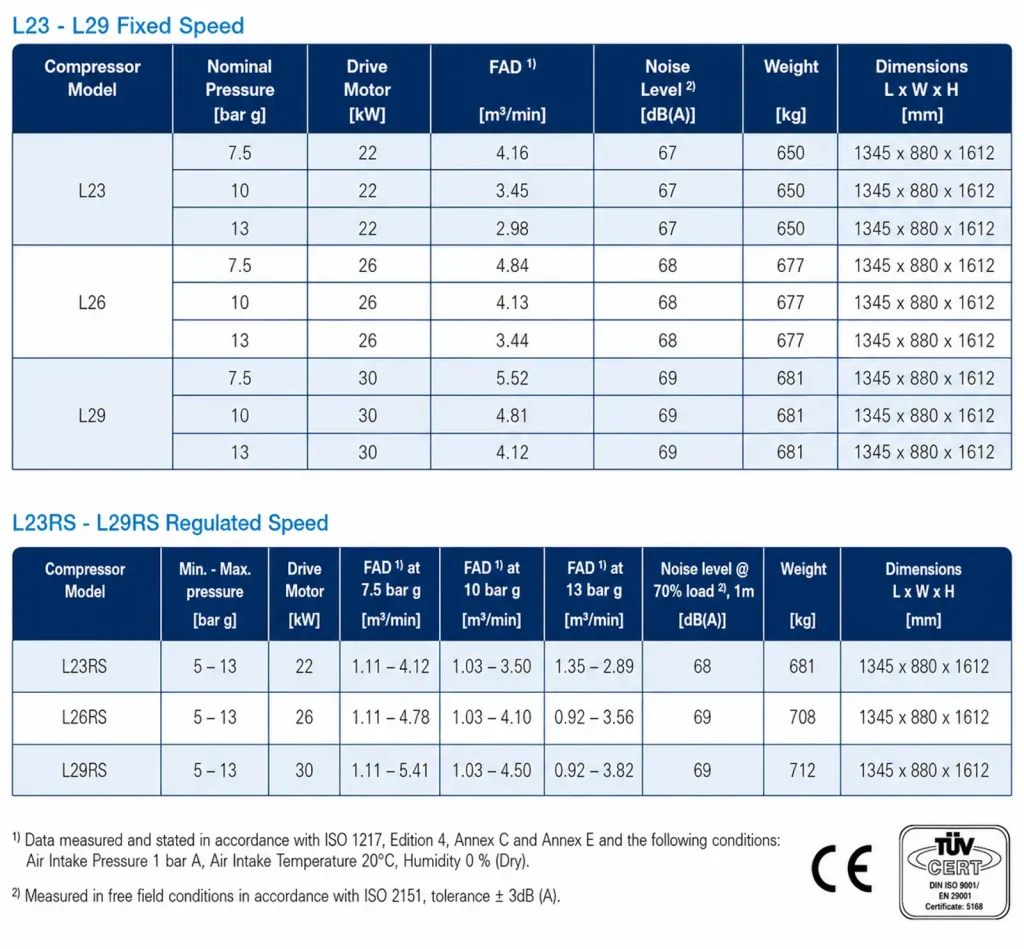

Technical Data
