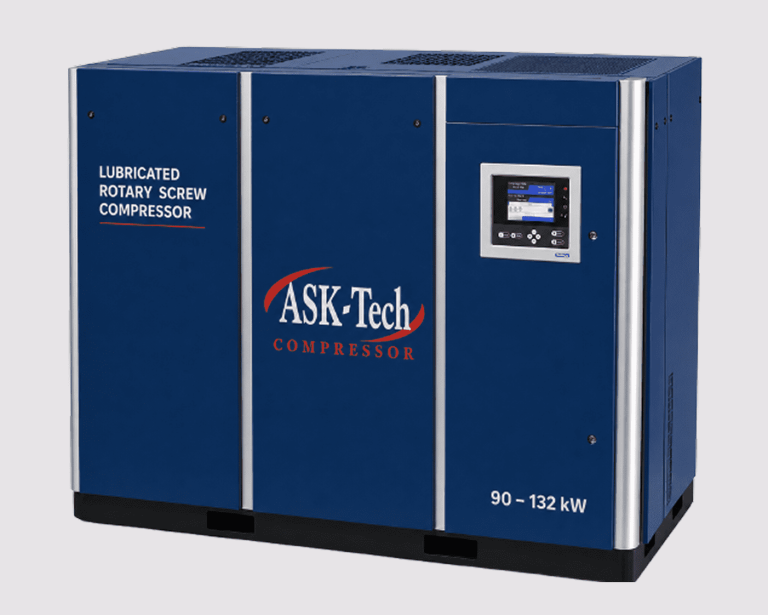

Lubricated Rotary Screw Compressor 90 – 132 kW

Lubricated Rotary Screw Compressor 90 - 132 kW

Heavy-Duty, Energy-Efficient and High-Performance

90 - 132 kW

ASK Lubricated Rotary Screw Compressors 90–132 kW are available in fixed speed and regulated speed models, including both single-stage and two-stage compressor configurations. Engineered for heavy industrial applications, the range delivers outstanding energy efficiency, reliable performance, and high-quality compressed air for continuous operation.

The advanced FourCore compressor range combines industry-leading efficiency with a compact and sustainable design, helping reduce energy consumption, installation space, and operating costs while ensuring dependable long-term industrial performance.

Benefits Engineering Excellence

ASK FourCore compressors are engineered to deliver the high efficiency of two-stage compression technology within the compact footprint of a single-stage compressor. Designed for modern industrial facilities with limited installation space, the advanced range provides exceptional energy savings, reliable performance, and sustainable operation for demanding applications.

Developed with innovative compact airend technology, the system integrates a single motor with advanced multi-rotor compression design to achieve superior efficiency and reduced energy consumption. Compared to conventional single-stage compressors, ASK FourCore models deliver significantly improved performance while maintaining a compact, space-saving design ideal for energy-conscious industrial operations.

90 to 132 kW Classic Range (single stage)

ASK 55–75 kW compressors feature premium high-efficiency airends designed to deliver superior compressed air performance with low energy consumption and reliable long-term operation. Equipped with advanced electric motor options, intelligent variable speed technology, high-performance cooling systems, and premium filtration components, these compressors ensure maximum efficiency, reduced maintenance requirements, and dependable industrial performance with easy service accessibility and low lifetime operating costs.

Outstanding Energy Efficiency and High Flow Rates

High reliability with superior compressed air quality
Advanced user-friendly touch-screen controller
Exceptional energy-efficient performance
Flexible operation for diverse industrial applications
Compact footprint for space-saving installation
Easy service accessibility with low maintenance costs
Innovative oil regulation technology for improved efficiency and reduced energy consumption

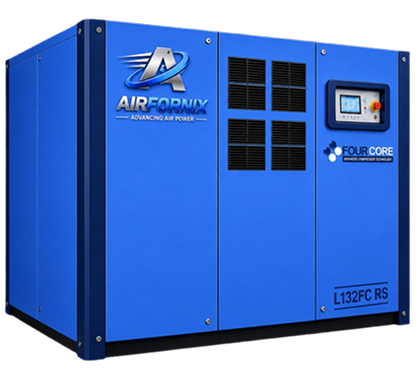

New generation FourCore airend technology

Extremely compact and lightweight design
High-efficiency compressed air performance
Semi-integrated oil management system for reduced components and improved reliability
Minimal hoses and hydraulic piping for lower maintenance costs
Leak-resistant system design
Flexible two-step drive gear configuration
Optimized interstage pressure for enhanced efficiency
Space-saving compact construction
Compatible integration with existing compressor ranges
Available in both fixed speed and variable speed models

Single Stage 90 to 132 kW Classic Range

ASK compressors are equipped with premium high-efficiency electric motors designed to deliver reliable performance with reduced energy consumption. Variable speed models efficiently adapt to changing air demand, helping optimize system efficiency and lower operating costs across industrial applications.

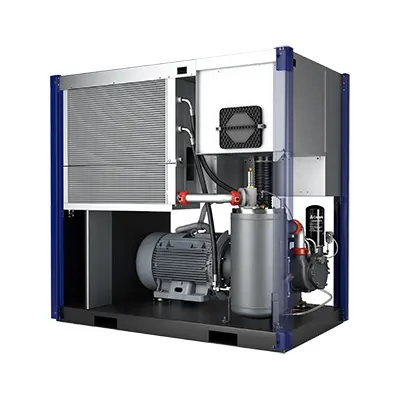

Built with high-quality components including advanced separator filters, large surface aftercoolers, and thermostatically controlled cooling systems, these compressors are engineered for maximum reliability, easy maintenance, and long-term operational performance. The reduced number of moving parts and accessible service points further help minimize maintenance requirements and downtime.

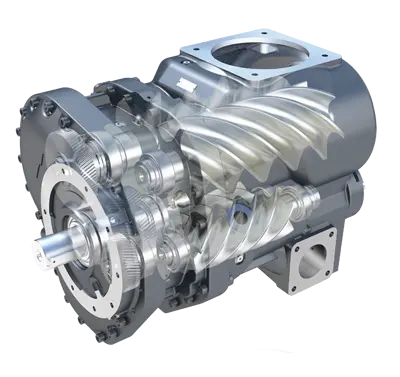

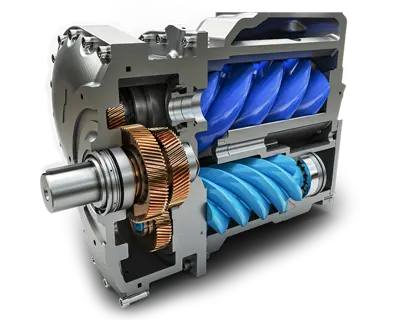

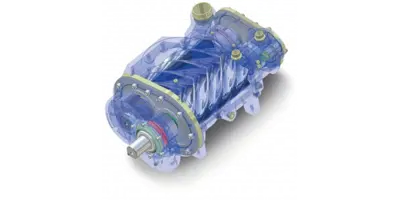

Premium efficiency airends

The advanced high-efficiency airend is engineered to deliver superior compressed air quality at low rotational speeds, helping reduce energy consumption while maintaining outstanding performance and reliability. Designed for long-term durability, ASK premium airends offer extended service life with dependable operation and industry-leading warranty support.

Delcos XL innovative touch-screen compressor controller

The advanced multilingual control system ensures safe, reliable, and efficient compressor operation by continuously monitoring critical operational parameters. Designed for easy and intuitive use, the controller helps reduce ownership costs while providing detailed system analysis through trend diagrams and graphical monitoring for optimized compressor efficiency and performance.

Features and Functions

Home screen with instant compressor status overview
Trend diagrams for performance analysis
Real-time clock for programmable scheduling
Start and stop control functionality
Secondary pressure setting support
Fault history and diagnostics log
Remote control through programmable inputs
Automatic restart after power failure
SD card support for operational data storage
iConn-enabled intelligent remote monitoring system

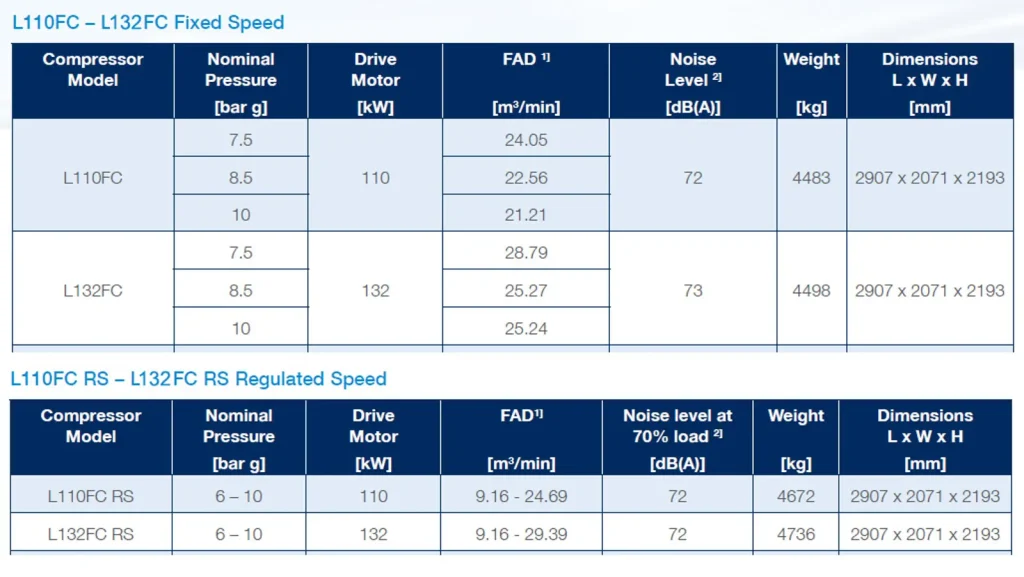

Fourcore Models Performance Data

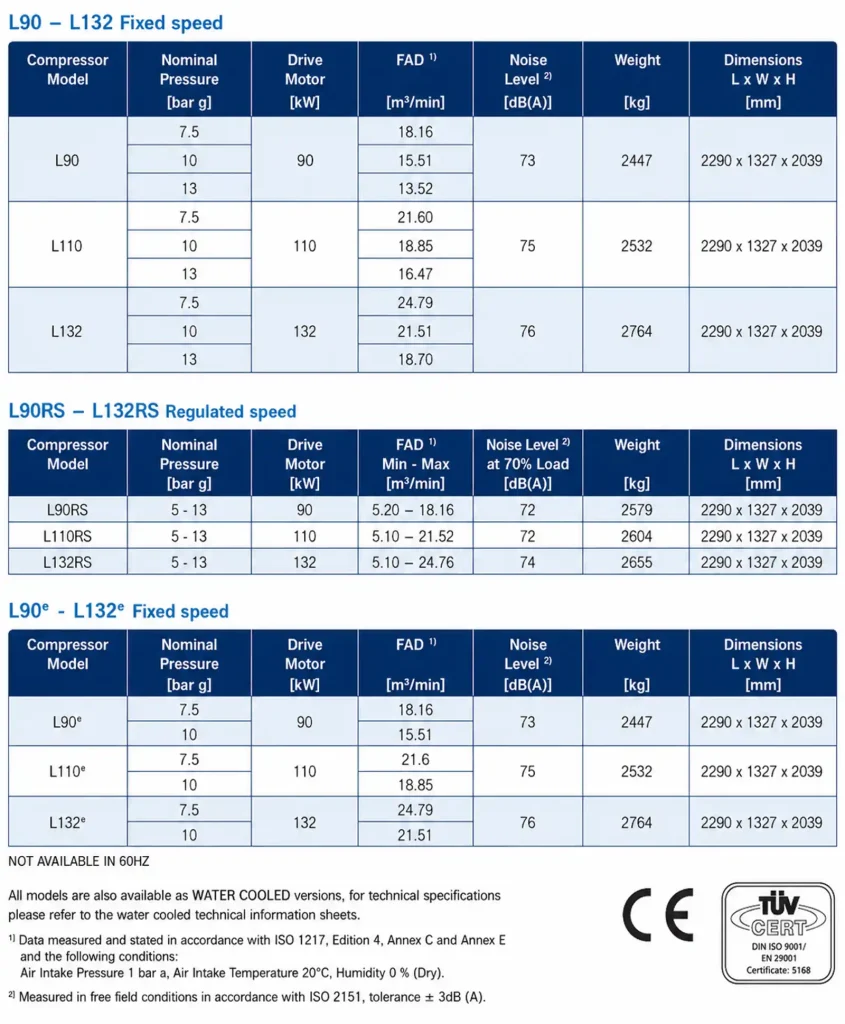

Single Stage Classic Range Performance Datasheet

Compressor genuine parts

ASK Compressor genuine parts are designed to ensure safe, reliable, and cost-efficient operation of your compressed air systems. Maintaining recommended service intervals is essential for preserving energy efficiency, reducing pressure losses, and protecting production reliability. Even visually similar non-genuine components can significantly affect system performance and operating costs.

ASK Compressor service kits include all required genuine spare and wear parts for scheduled maintenance, helping maintain optimum compressor performance, extended equipment life, reduced downtime, and maximum operational efficiency.

Model	Number	Description
L110FC - L132FC	CK4GD10FC-1	4000 Hour Service Kit
L110FC - L132FC, RS -A/ -W	CK4GD10FC-2	4000 Hour Service Kit
L110FC - L132FC, RS -W	CK4GD10FC-3	4000 Hour Service Kit
L90 - L132	CK2GD8-1	Standard Filter Kit (Air/Oil)
L90 - L132	CK4GD8-1-N	Separator Kit (requires CK2 Kit)
L90e - L132e	CK4GD8E-1-N	Separator Kit (requires CK2 Kit)
L90 - L132	CK4GD8-1-RS-N	Separator Kit (requires CK2 Kit)
L90 - L132	CK4GD8-1-EK-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L90e - L132e	CK4GD8E-1-EK	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L90 - L132	CK4GD8-1-RS-EK-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L90 - L132, RS / e	CK8GD8-1-N	Major Kit (requires also CK4 Kit + CK2 Kit)
L110FC - L132FC -W, RS	CK8GD10FC-2	Major Kit (requires also CK4 Kit)
L90 - L132	SCWOBG2-5	Screw Warranty Oil Fluid Force, 20 l
L90 - L132	A92130520	CompAir Warranty Oil AEON S, 5 l
L90 - L132	A92130530	CompAir Screw Warranty Oil AEON S, 20 l
