Lubricated Rotary Screw Compressor 55 – 75 kW

Lubricated Rotary Screw Compressor 55 - 75 kW

High-Capacity, Energy-Efficient and Reliable

55 - 75 kW

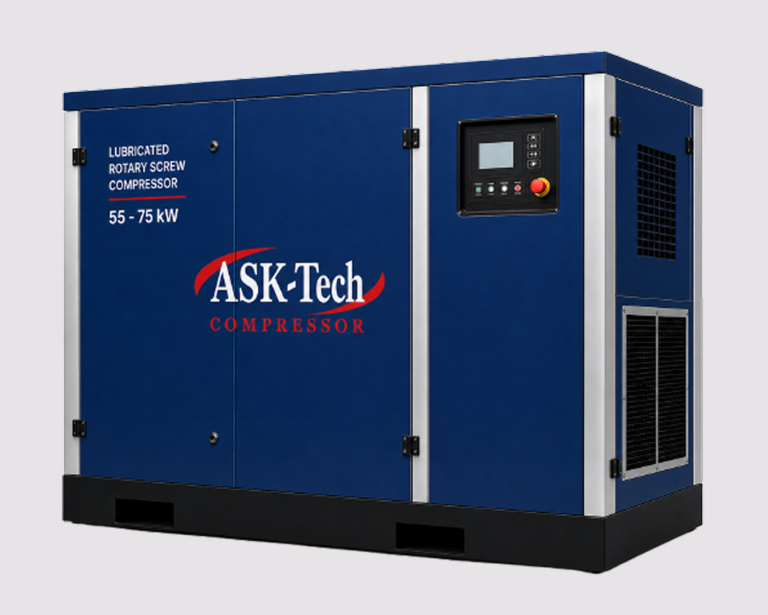

ASK Lubricated Rotary Screw Compressors 55–75 kW are available in both fixed speed and regulated speed models, delivering reliable, energy-efficient, and high-performance compressed air solutions for demanding industrial operations.

The advanced 55–75 kW range has been enhanced with improved “e” models that offer higher efficiency, optimized performance, and a more compact design compared to conventional systems. Engineered for continuous operation, these compressors provide dependable airflow, reduced energy consumption, and space-saving installation benefits for modern industrial environments.

Benefits Engineering Excellence

ASK 55–75 kW lubricated rotary screw compressors are engineered with a compact, space-saving design for easy installation in industrial environments with limited space. The upgraded range delivers improved efficiency, higher airflow performance, and reduced lifetime operating costs through advanced airend technology and optimized system engineering.ASK compressors are more than just an equipment investment — they are a critical part of delivering consistent, high-quality, and cost-effective compressed air for industrial operations. The advanced screw compression element, engineered with precision manufacturing technology, ensures exceptional reliability, energy efficiency, and long-term performance while helping reduce overall operating costs.

Design Concept Based on Reliability and Flexibility

ASK 55–75 kW compressors feature premium high-efficiency airends designed to deliver superior compressed air performance with low energy consumption and reliable long-term operation. Equipped with advanced electric motor options, intelligent variable speed technology, high-performance cooling systems, and premium filtration components, these compressors ensure maximum efficiency, reduced maintenance requirements, and dependable industrial performance with easy service accessibility and low lifetime operating costs.

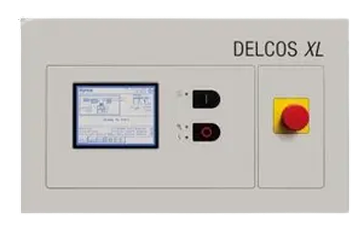

Controller Delcos XL innovative touch-screen compressor controller

Delcos XL innovative touch-screen compressor controller The multilingual control system ensures safe and reliable operation and protects operators’ investment by continuously monitoring the operational parameters which is essential for reducing costs of ownership. The Delcos XL se is extremely user-friendly and self-explanatory. With the ability to display detailed system analysis in the form of trend diagrams and graphs operating parameters can be precisely set to maximise the efficiency.The ASK Compressor control system is designed to ensure reliable operation, intelligent monitoring, and maximum equipment protection by continuously tracking critical compressor parameters. Featuring a modern user interface with a clear graphic display, the system provides advanced control, efficient performance management, and simplified operation.

Advanced Features & Intelligent Monitoring

ASK Compressor control systems provide intelligent monitoring and advanced operational control for improved efficiency, reliability, and system performance. The user-friendly interface offers real-time compressor status updates, trend monitoring, fault history tracking, programmable controls, and automatic restart functionality for seamless operation.

With integrated iConn remote monitoring technology, ASK compressors help predict potential issues before they occur, reducing downtime, maintenance costs, and operational interruptions. The smart monitoring system also helps optimize production performance, improve energy efficiency, and simplify compressor management across industrial applications.

Model	Number	Description
L55 - L75, RS	CK2GD6-1	Standard Filter Kit (Air/Oil)
L55 - L75	CK4GD6-1-N	Separator Kit (requires CK2 Kit)
L55 - L75, RS	CK4GD6-1-RS-N	Separator Kit (requires CK2 Kit)
L55 - L75	CK4GD6-1-EK-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L55 - L75 F	CK4GD6-1-EKF-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L55 - L75, RS F	CK4GD6-1-RS-EKF-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L55 - L75, RS	CK4GD6-1-RS-EK-N	4000 Hour Service Kit (contains Air/Oil filter, Separator)
L55 - L75, RS	CK8GD6-1-N	Major Kit (requires also CK4 Kit + CK2 Kit)
L75e	CK8GD6-2-N	Major Kit (requires also CK4 Kit + CK2 Kit)
L55 - L75	SCWOBG2-5	Screw Warranty Oil Fluid Force, 5 l
L55 - L75	SCWOBG2-20	Screw Warranty Oil Fluid Force, 20 l
L55 - L75	A92130520	CompAir Warranty Oil AEON S, 5 l
L55 - L75	A92130530	CompAir Screw Warranty Oil AEON S, 20 l
